EN10241 Pipe nipple lengths chart -Cangzhou Hongxin factory offer

Categories:

Contact Now

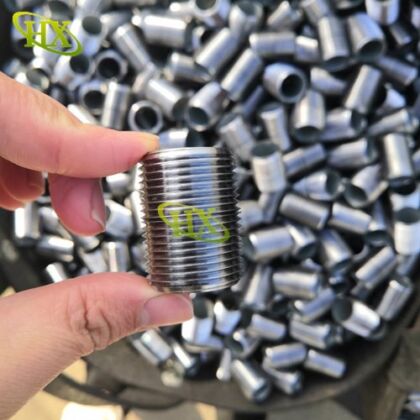

Standard Steel Pipe Nipple Lengths       1.Close Nipple (Shortest Length)    Length: Threads run nearly the entire length, leaving almost no unthreaded space.    Applications: Tight spaces where minimal length is required.    Common Sizes: 1/8″ to 4″ diameters.
  1. Short Nipple
 Length: Slightly longer than a close nipple, with a small unthreaded section.    Typical Lengths: 1″ to 2″ (varies by diameter).    Applications: Compact installations with limited clearance.
  1. Standard/Long Nipple
 Length: The most commonly used size, with a balanced threaded and unthreaded portion.    Typical Lengths: 2″ to 12″ (or longer for custom orders).    Applications: General plumbing, water lines, and industrial piping.
  1. ExtraLong Nipple (Extension Nipple)

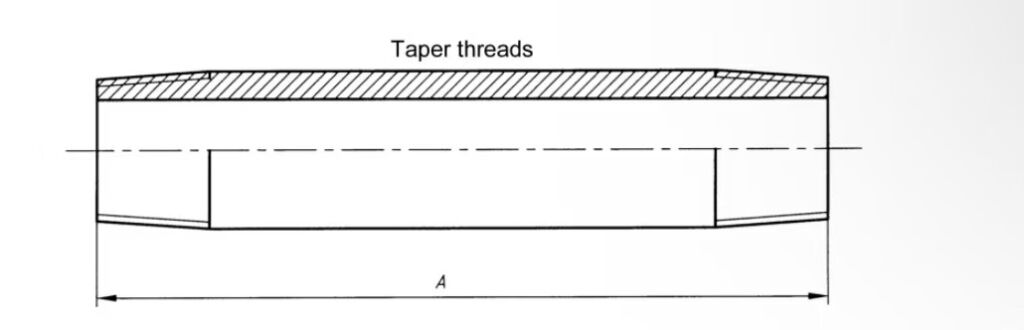

 Length: Extends beyond standard lengths for specific spacing needs.    Typical Lengths: 12″ up to 36″ (custom lengths available).    Applications: Largescale industrial systems requiring extended reach.   EN10241 pipe nipple lengths chart
Nominal Size DN Overall length A MM
6 8 10 30 30 30 40 40 40 50 50 50 60 60 60 80 80 80 100 100 100 120 120 120 150 150 150 180 180 180 200 200 200 250 250 250 300 300 300
15 20 25 40 40 50 50 50 60 60 60 80 80 80 100 100 100 120 120 120 150 150 150 180 180 180 200 200 200 250 250 250 300 300 300
32 40 50 50 50 60 60 60 80 80 80 100 100 100 120 120 120 150 150 150 180 180 180 200 200 200 250 250 250 300 300 300
65 80 100 80 80 100 100 100 120 120 120 150 150 150 180 180 180 200 200 200 250 250 250 300 300 300 400 400
125 150 120 120 150 150 180 180 200 200 250 250 300 300 400 400 500 500
